Simple 3 Bedroom House Plan – H5

simple 3 bedroom house plan

» Click to REVERSE Floor Plan

• Alternative Facade Designs:

• Specifications:

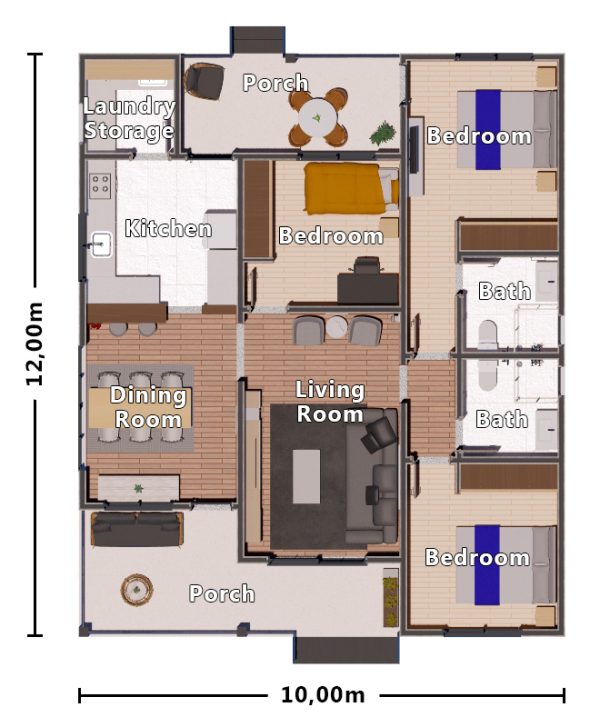

Dimension: 10,00m x 12,00m (33ft x 39ft)
Floor Area: 120,00m² (1292 sq. ft.)
3 Bedrooms (1 Suite)

• 3D Virtual Tour:


3 Bedrooms House Design with Porch

House with front and back porch. Inside it has a living room, dining room and kitchen, as well as an area for laundry and storage. With 3 bedrooms, one of which is a suite, the house was designed to provide functionality and comfort, with natural lighting and ventilation.

Simple 3 Bedroom House Plan – H5

Dimension: 10,00m x 12,00m
Floor Area: 120,00m²
3 Bedrooms (1 Suite)

Essential item for construction. House drawing with all measures, dimensions, details and areas of the rooms – measured in meters.

It also comes with the Rendered Floor Plan – a color representation of the Architectural Floor Plan, for better understanding.

Vertical elevation of the facade with details to assist in the visualization and construction.

Foundation layout plan, with indication of footings, beams and pillars.

Detailing of “sliced” sections of the house, with measurements and heights of elements such as walls, steps, roofs, slabs and ceilings.

Roof plan representation with measurements, slope orientations and water flow directions.

Digital house plan files in DWG format, which can be edited by CAD software, such as AutoCAD.

• Doors and windows schedules with quantities, sizes and installation heights.

• HD Rendered Images of the house.

Get it instantly by e-mail, for only:

Original price was: $ 144,90.Current price is: $ 77,60.

Price in US dollar (USD). Payment accepted by credit or debit card and PayPal.

Delivery Details:

You will receive the files automatically in your e-mail once the purchase is made. The architectural house plan is sent in PDF format, and can be viewed on any device or printed on paper. You will also receive the editable DWG files (CAD Files).
