Simple 2 Bedroom House Plan – H6r (Reverse)

Category: 2 Bedroom House Plans

Description

» Click to REVERSE Floor Plan

• Alternative Facade Designs:

• Specifications:

Dimension: 9,80m x 12,00m (32ft x 39ft)
Floor Area: 66,60m² (717 sq. ft.)
2 Bedrooms (1 Suite)

• 3D Virtual Tour:

2 Bedroom Simple House Plan

A simple and comfortable house, with a front porch and garage. It has a combined living and dining room and a good-sized practical kitchen, as well as a laundry room with storage space. With 2 bedrooms, one of which is a suite, the house was designed to provide functionality and comfort, with natural lighting and ventilation.

Get the plan!

What's included:

Click for details.

* Illustrative images

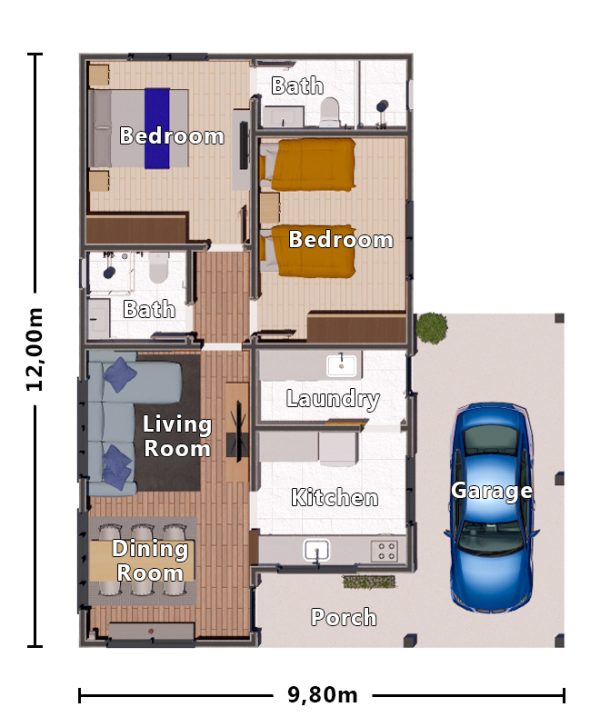

Architectural Floor Plan

Essential item for construction. House drawing with all measures, dimensions, details and areas of the rooms – measured in meters.

It also comes with the Rendered Floor Plan – a color representation of the Architectural Floor Plan, for better understanding.

Exterior Elevation

Vertical elevation of the facade with details to assist in the visualization and construction.

Foundation Plan

Foundation layout plan, with indication of footings, beams and pillars.

Cross Sections

Detailing of “sliced” sections of the house, with measurements and heights of elements such as walls, steps, roofs, slabs and ceilings.

Roof Plan

Roof plan representation with measurements, slope orientations and water flow directions.

CAD Files

Digital house plan files in DWG format, which can be edited by CAD software, such as AutoCAD.

Extras

• Doors and windows schedules with quantities, sizes and installation heights.

• HD Rendered Images of the house.
